Characteristic description

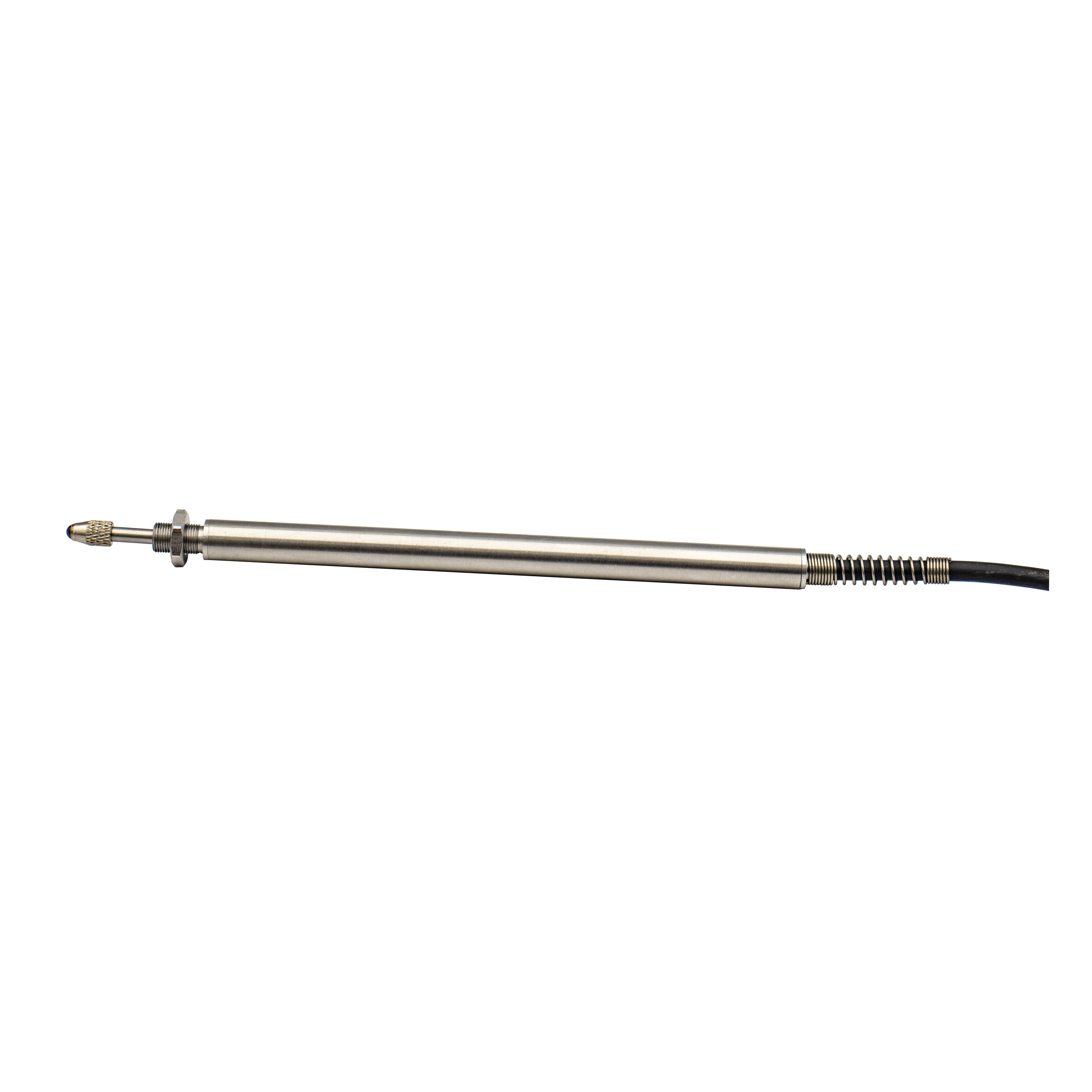

External diameter Φ 8mm, stainless steel 304 shell, rebound type
Built in precision linear bearing, good repeatability
The probe is made of silicon nitride ceramic ball with high resolution and good wear resistance
DC single power supply, built-in high-performance signal demodulator
Product size is short, suitable for use in small space
※ Application field
Robot shaft diameter detection precision displacement measurement glass production detection automobile parts detection?

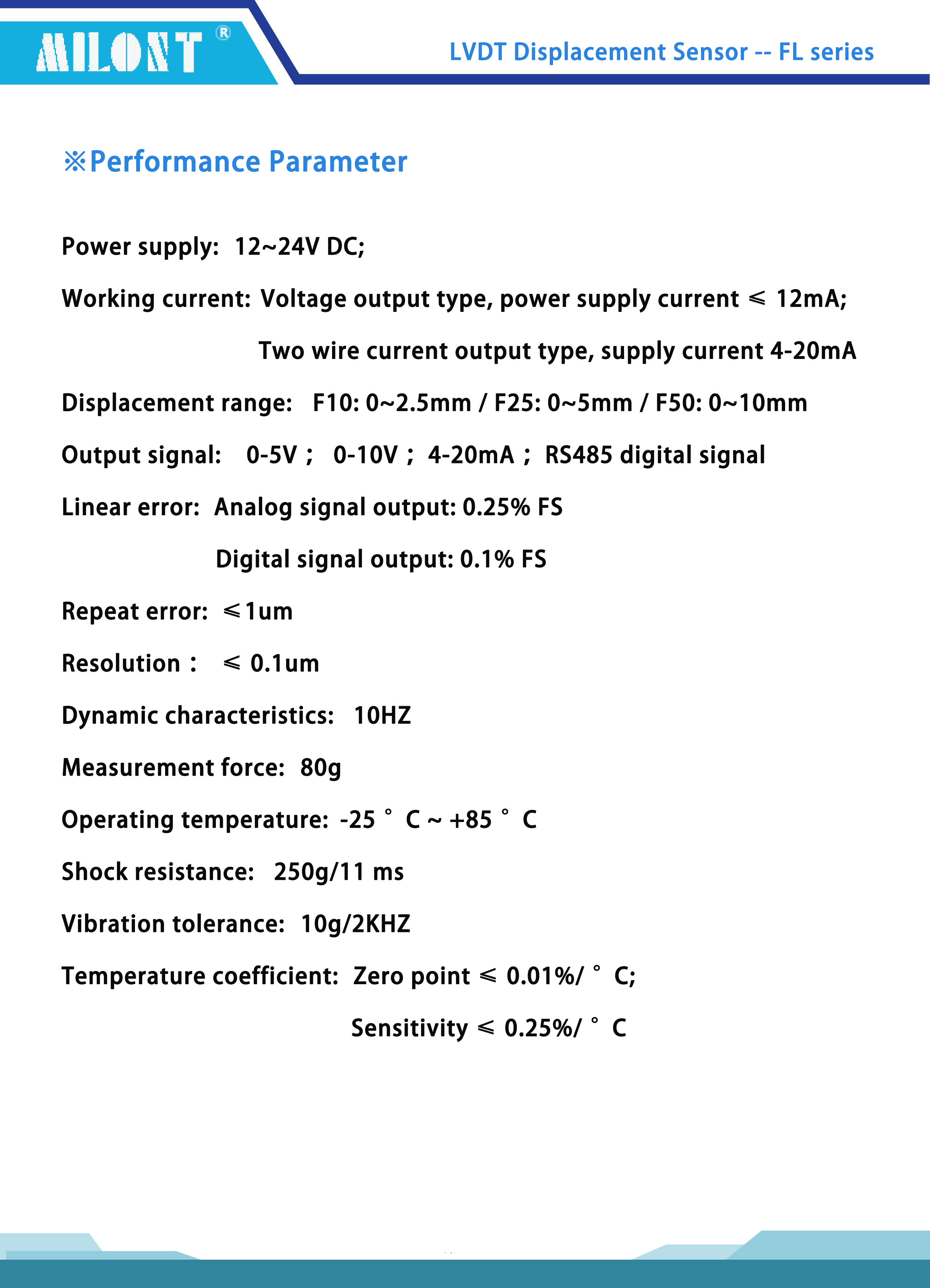

※Performance parameter
?
Power supply: |
12—24V DC; |
Working current: |
Voltage output type, power supply current ≤ 12mA; Two wire current output type, supply current 4-20mA |
Displacement range: |
F10 ：?0-2.5mm / F25: 0-5mm / F50: 0 -1 0 mm |
Output signal: |
0-5V ；??0-10V ；??4-20mA ；??RS485 digital signal |
Linear error: |
Analog signal output: 0.25% FS Digital signal output: 0.1% FS |
Repeat error: |
≤1um |
Resolution ：? |
≤ O.1um |
Dynamic characteristics: |
10HZ |
Measurement force: |
80g |
Operating temperature: |
-25 °C — +85 °C |
Shock resistance: |
250g/11 ms |
Vibration tolerance: |
10g/2KHZ |
Temperature coefficient: |
Zero point ≤ 0.01%/ ° C; Sensitivity ≤ 025%/ ° C? |
